MSP430 microcontroller(LAUNCHPAD) GETTING STARTING

The MSP-EXP430G2 LaunchPad is an easy-to-use flash
programmer and debugging tool for the MSP430G2xx microcontrollers.
It features everything you need to start developing on an MSP430
microcontroller device for just 300-400 rupees. It has on-board emulation for
programming and debugging and features a 14/20-pin DIP socket, on-board buttons
and LEDs & BoosterPack-compatible pinouts that support a wide range of
plug-in modules for added functionality such as wireless, displays & more.

In this tutorial we will see how to get starting with the msp program very first time.

step 1: First download the code composer studio. DOWNLOAD

step 2: Now install it and connect the device to the computer.

step 3: Open the code composer studio. Select the path of the workspace where you want to store your project.

step 4: Now the project window is appear. This is the entire environment in which you write the c code and dump it into the microcontroller.



step 5: Go to the file menu and select new in the new option you will see various project option in which you will chose the ccs project.

                                                  file-) new -) ccs project

step 6: Give the project name and path of the location.

step 7: Now its time to select the type of the project. select the platform chose msp430.

step 8: This is an optional or additional feature if u wish to include any other project or c file so we do not need to do any thing with this just click next.

step 9: Select the Output file as EXECUTABLE and your microcontroller in this step as shown in the image below.

step 10: Now select the project templet as you are new so chose the empty project .

step 11: after the step 10 your window will look like this .

step 12: Now make new file.

                            > file-) new file

step 13: Put the new file name with extension .c.As in first program write it led_blink.c.

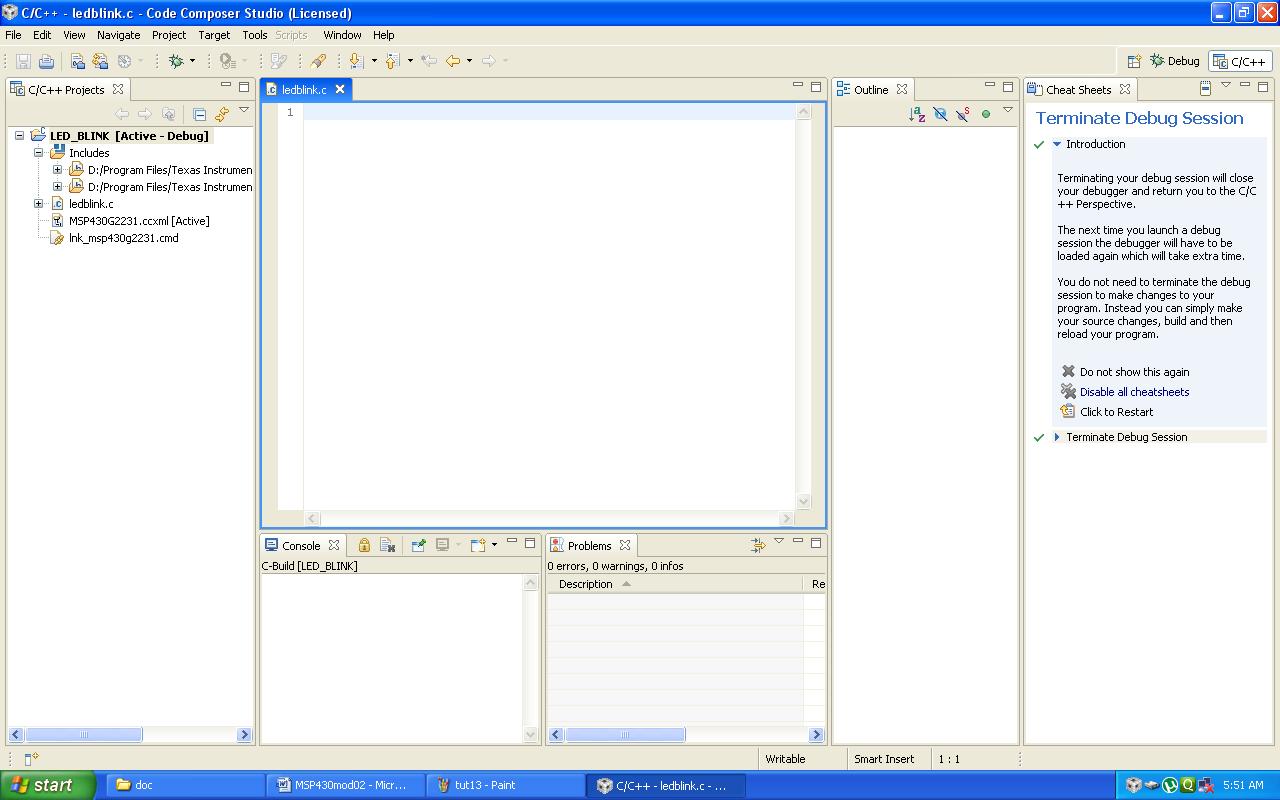

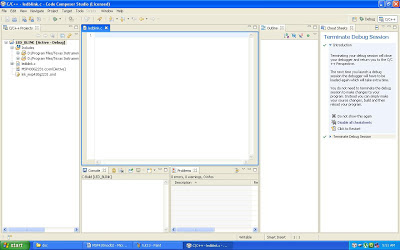

step 14: After the 13th step the window will look like ..

step 15: Now write your code of led blinking.  mine is in the image below.

//***********************************************************

// LED BLINK

//***********************************************************

#include <msp430g2553.h>

#define led1  BIT5

#define led2  BIT0

void main()

{

WDTCTL = WDTPW + WDTHOLD;                 // Stop watchdog timer

P1DIR = (led1+led2);                             // P1.0 & 6 output (red/green LEDs)

P1OUT = led1;

while(1)

{

P1OUT = 0;    // green LED on & Red LED off

_delay_cycles(500000);

P1OUT = 1;        // green LED off & RED LED ON

_delay_cycles(500000);

}

}

step 16: Now compile it by using build all in the project bar. and you can also use ctr+b

                               project-) build active project

step 17: Now launch debug button  if your device is connected with the computer it will burn your conttroller.

 step 18: Now hit the terminate button in the screen and disconnect the device and reconnect it your code will run and use these steps for your further development best of luck.
